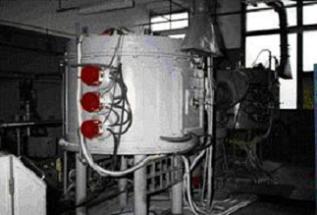

DECOR TWO-CHAMBER VACUUM ARC FACILITY

Field of application:

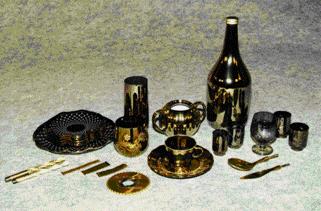

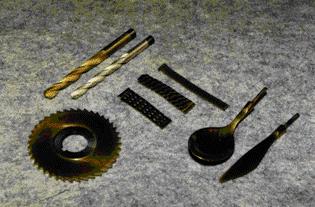

Commercial deposition of functional coatings: wear-resistant, anti-corrosive, heat-resistant, protective, decorative in aпїЅwide range of colors. Deposition ofпїЅcoatings from various metals and their nitrides, oxides and carbides.

Decor Decor2 Decor3

Technical characteristics
Maximum consumed power, kW 100
Background pressure, Pa 6,7 х 10-4
In-chamber heating power, kW 40
Ion cleaning sources, Current, mA 150
Ion cleaning sources, Voltage, kV 5
Arc sources, Current, A 60
Arc sources, Voltage, V 30
Maximum water flow rate, m³/s 3

Publications:

1. M.V. Gordienko, V.V. Ivanov, D.A. Karpov et al., Two-chamber vacuum-arc plant "DECOR" for deposition of functional and decorative coatings. Plasma Devices and Operations, 1997, vol. 5,pp. 227-237.

Deliveries:

ProductDelivery yearCustomerCountry
DECOR two-chamber vacuum-arc facility 1994 Svetlana Industrial Association Russia
